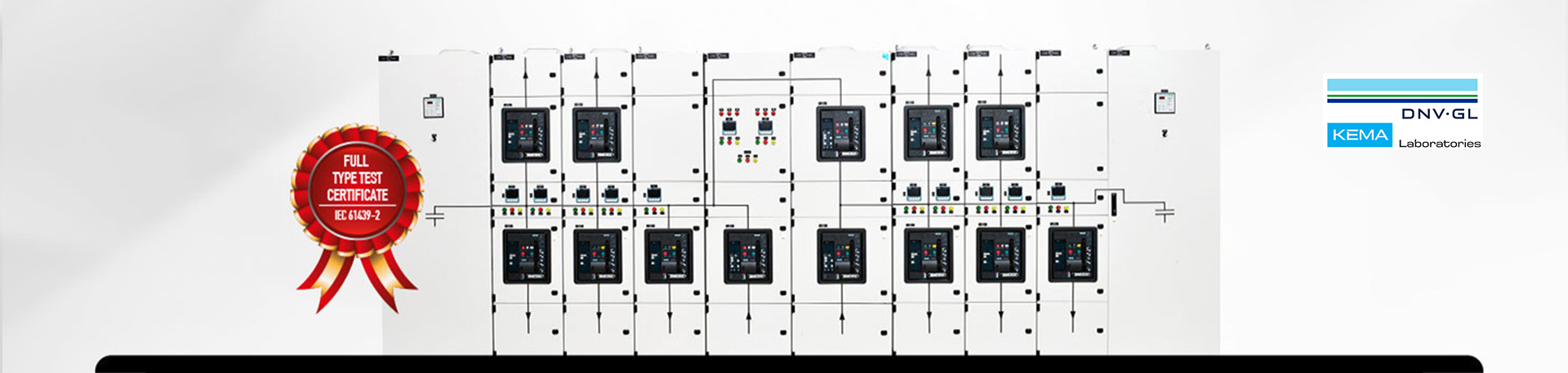

ARELPAN-C Low Voltage Power Distribution Panel

ARELPAN-C Low Voltage Power Distribution Panel systems have been designed to meet the requirements of industrial facilities, power plants, iron and steel production facilities and petrochemical facilities in accordance to IEC standards.

Three main line of defense is taken into consideration against malfunctions during design.

Restriction

Additional mechanical precautions

Prevention

Precautions taken against explosions that may occur towards living spaces.

Arrangement

To use special clothing and to comply with electrical safety rules.

Restriction

Additional mechanical precautions

Prevention

Precautions taken against explosions that may occur towards living spaces.

Arrangement

To use special clothing and to comply with electrical safety rules.

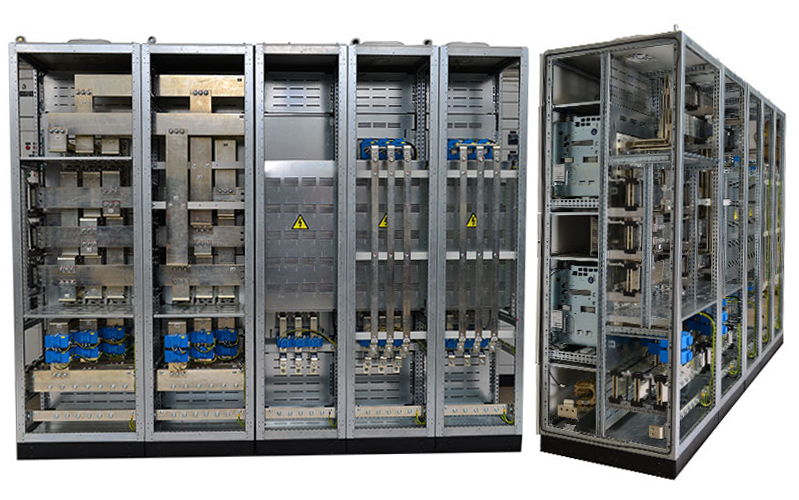

ARELPAN-C LV panels are produced with a solid body structure of 2 mm multi-folded galvanized sheet and provide a strong mechanical endurance with the support of connecting pieces of 4 mm.

Vertical and horizontal assembly is possible in line with technical data of well-known switchgear brands such as ABB, Eaton, Schneider, Siemens, Legrand, Federal and etc.

ARELPAN-C LV panels enable generation of power up to 6300A, providing separation up to Form 4b and protection degree up to IP65.

Cable inlets and outlets can be designed as being at the top or bottom of the panels.

Standard Information

Rated Current, In

6300 A

Bus-bar Short-term Withstand Current, Icw

100kA

Internal Arc Test

65kA , 300 ms

Protection Class

IP41

Forming

Up to form 4b

Mechanical Impact Resistance

IK 10

Standard Color

RAL 7035, Elektrostatik

Carcass Material Type

Galvaniz

Distribution System

TN-C, TN-S, TN C-S, TT, IT

Operating Voltage, Ue

Up to 690 V

Impact Resistance Voltage, Uimp

8kV / 12kV

Operating Isolation Voltage, Ui

1000 V

Bus-bar Peak Withstand Current, Ipk

264 kA

Ambient Temperature

35 C (24h)

Forms of Seperation in LV Panels
IP & IK Protection Technicals

Strong Profile Structure

Modular Mechanical Assembly Units

Mounting Types are Available For All Brands

2 mm Galvanized Steel, RAL 7035 Colour

Stylish and Arty Outlook
