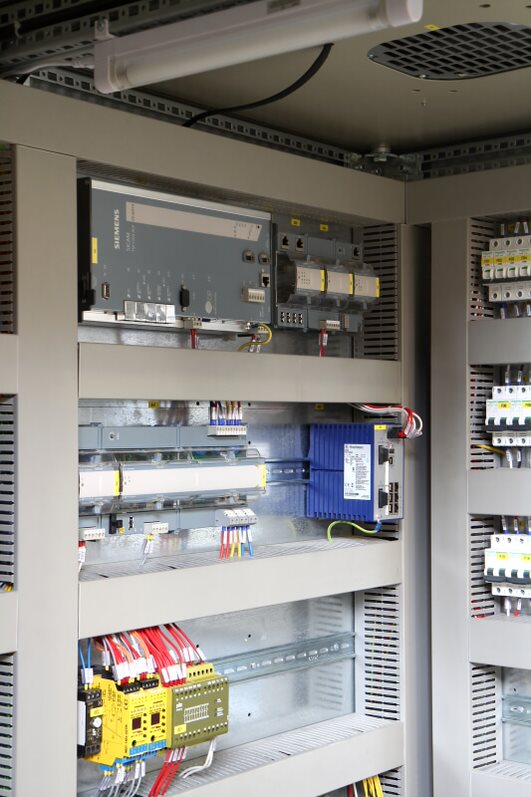

PLC and RTU Automation Panels

We make the solution partnership with many local companies which are specialized in their sector mainly industrial facilites, smart bulding systems and energy automation systems. Especially, at the project desinging stage, our feature that converting the signal lists fastly to the cabling and application projects, allows to respond our customers fastly and preventing possible delays.

Our team who is experienced about project designing of high ecenomic value equipments and systems, creates optimum solution for automation sytems with quality, compliant with standarts and strength.

Standard Information

Rated Current, In

6300 A

Bus-bar Short-term Withstand Current, Icw

100kA

Internal Arc Test

65kA , 300 ms

Protection Class

IP41

Forming

Up to form 4b

Mechanical Impact Resistance

IK 10

Standard Color

RAL 7035, Elektrostatik

Carcass Material Type

Galvaniz

Distribution System

TN-C, TN-S, TN C-S, TT, IT

Operating Voltage, Ue

Up to 690 V

Impact Resistance Voltage, Uimp

8kV / 12kV

Operating Isolation Voltage, Ui

1000 V

Bus-bar Peak Withstand Current, Ipk

264 kA

Ambient Temperature

35 C (24h)

Forms of Seperation in LV Panels
IP & IK Protection Technicals

Strong Profile Structure

Modular Mechanical Assembly Units

Mounting Types are Available For All Brands

2 mm Galvanized Steel, RAL 7035 Colour

Stylish and Arty Outlook
